Rebound Testing Hammer

50000.00 - 100000.00 INR/Piece

Get a Price/Quote

Product Details:

Display Type Analog Scale
Temperature -10C to +45C
Humidity 85% RH
Max Height Length: 350 mm
Equipment Type Rebound Testing Hammer
Operating Voltage Not Applicable (Manual)
Test Range 10-70 N/mm
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Rebound Testing Hammer Price And Quantity

Price Range 50000.00 - 100000.00 INR/Piece
Minimum Order Quantity 1 Piece

Rebound Testing Hammer Product Specifications

Operating Voltage Not Applicable (Manual)
Equipment Type Rebound Testing Hammer
Machine Weight 2.5 kg
Max Height Length: 350 mm
Humidity 85% RH
Temperature -10C to +45C
Display Type Analog Scale
Accuracy 1 N/mm
Test Stroke 75 mm
Mounting Type Handheld
Hardness Up to 70 N/mm
Capacity Standard Impact Energy: 2.207 Joules
Resolution 1 N/mm
Features Portable, Easy to operate, Durable
Control Mode Manual
Number of Specimens Single
Power Supply None (Manual Spring Mechanism)
Measuring Range 10-70 N/mm
Specimen Size Minimum 150 mm 150 mm
Test Speed Standard: 2.2 m/s
Usage Concrete hardness and strength testing
Application Non-destructive concrete compressive strength evaluation
Response Time Immediate
Test Width 32 mm
Automation Grade Manual
Test Range 10-70 N/mm

Rebound Testing Hammer Trade Information

Supply Ability 100 Piece Per Week
Delivery Time 5-7 Days

Product Description

We have uniquely positioned ourselves as a dependable firm, engaged in offering Rebound Testing Hammer. This is demanded for assessing the likely compressive strength of concrete. This is accessible in number of specifications as per the needs of customers. Apart from this, remarkable quality, performance and durability increase the demand of our offered Rebound Testing Hammer in the market.

High Durability and Precision Engineering

Constructed from high-quality aluminum alloy and steel components, the hammer is designed for rugged professional use. It ensures over 20,000 accurate and consistent tests, making it a long-lasting investment for concrete inspection needs in various environmental conditions, from -10C to +45C and humidity up to 85% RH.

Non-Destructive Concrete Strength Measurement

Operating via a spring rebound mechanism, the device provides immediate analog readings for concrete strength, ranging from 10-70 N/mm2. Its clear engraved markings, easy manual control, and single specimen testing capability allow for rapid and reliable evaluations without damaging the tested materials.

Portable and User-Friendly Design

Weighing only 2.5 kg and encased in a hard carry case, the rebound hammer is straightforward to transport between job sites. Its handheld, manual design, and low maintenance requirements ensure users can effortlessly perform regular concrete testing with minimal training and equipment setup.

FAQ's of Rebound Testing Hammer:

Q: How do I operate the Rebound Testing Hammer for concrete strength testing?

A: Simply hold the instrument manually, place the steel plunger against the concrete surface, and release the spring mechanism. The rebound value is displayed instantly on the analog scale for direct interpretation of concrete compressive strength.

Q: What calibration procedures are required for accurate measurements?

A: The hammer should be periodically calibrated using the supplied standard test anvil. Regular calibration helps maintain 1 N/mm2 accuracy over its service life and ensures measurement consistency during concrete assessment.

Q: When should the hammer be cleaned or maintained?

A: Routine cleaning is recommended after each testing session to prevent dust and debris accumulation. Periodic calibration is advised, particularly before use on critical projects, to guarantee sustained test reliability.

Q: Where can I use this device for testing concrete?

A: The hammer is suitable for indoor and outdoor construction sites throughout India and can be used anywhere the ambient temperature ranges from -10C to +45C and humidity levels are up to 85% RH.

Q: What is the process for non-destructive strength evaluation using this tool?

A: Position the specimen (minimum size 150 mm 150 mm), set the device on the surface, and operate the manual control for a single test stroke of 75 mm. Measure the immediate rebound, which correlates with the concrete's compressive strength.

Q: What are the benefits of using the Rebound Testing Hammer?

A: It offers reliable, immediate, and repeatable results without damaging concrete structures, features long service life and durability, is lightweight and portable, and requires no external power supply, making it ideal for field applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Rock Testing Equipment' category

NCCBM Calibrated Concrete Testing Hammer Minimum Order Quantity : 1 Usage : Quality Control, Construction Site Inspection Equipment Type : Concrete Testing Hammer (Schmidt Hammer) Application : Nondestructive testing of concrete compressive strength

Send Inquiry

Industrial Core Cutting Machine Price : 200000 INR/Piece Minimum Order Quantity : 1 Usage : Core Cutting Equipment Type : Core Cutting Machine Material : Mild Steel Product Type : Core Cutting Machine Color : Blue Application : Core Cutting

Send Inquiry

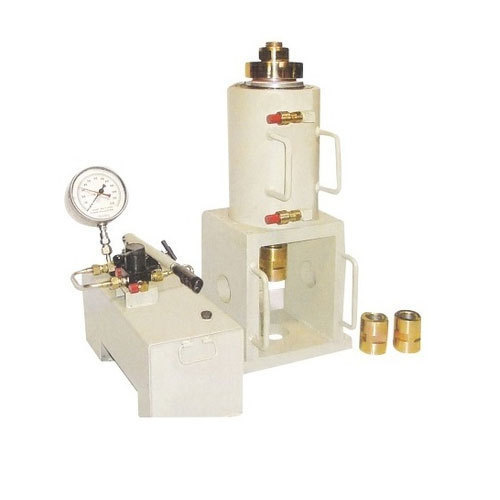

Rock Bolt Pull Out Test Apparatus Price : 65000 INR/Piece Minimum Order Quantity : 1 Usage : Industrial Material : Mild Steel Product Type : Rock Bolt Pull Out Test Apparatus Color : White
